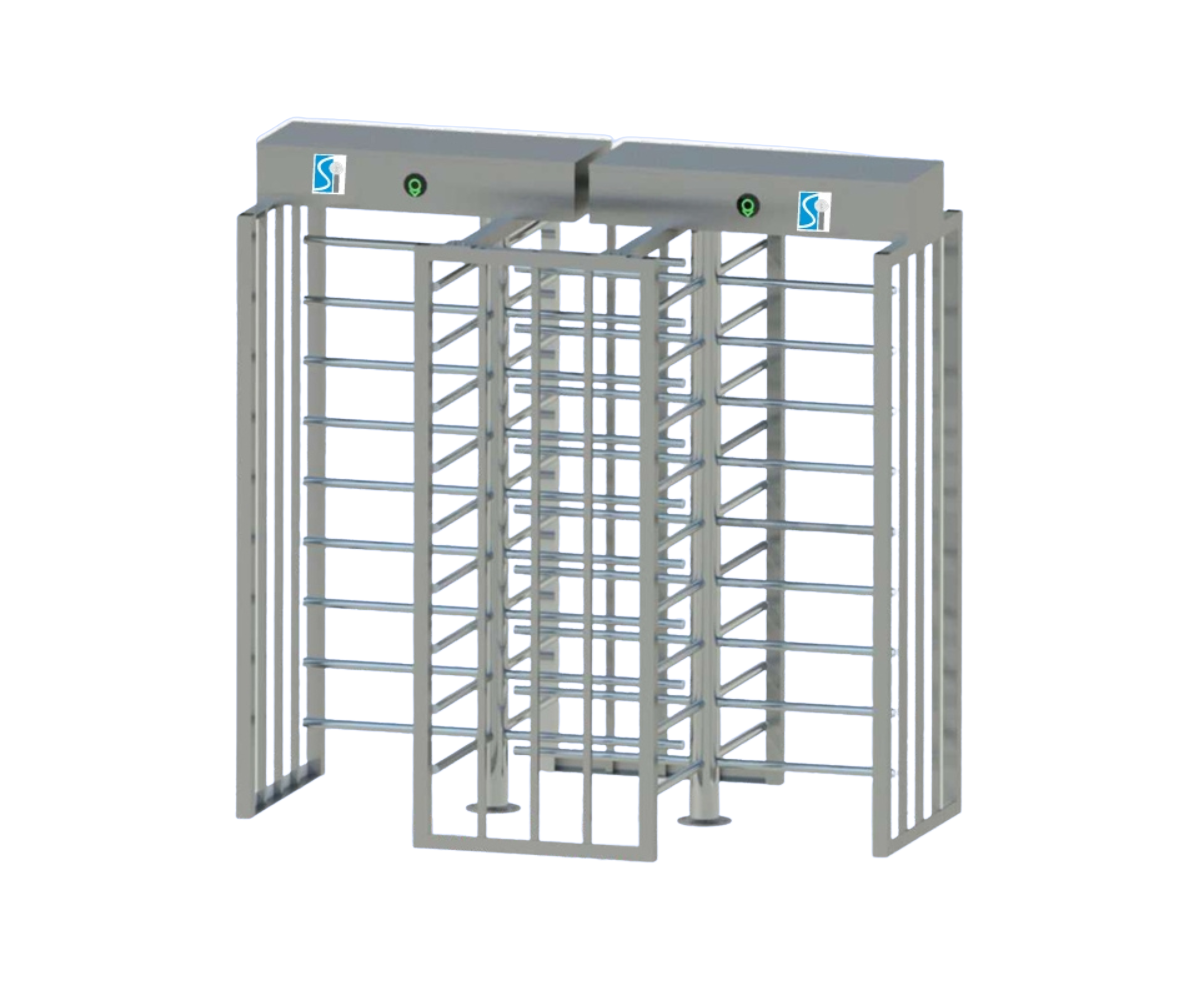

Smart full Height Turnstile dual lane

Supply Voltage: 230VAC ±10%
Power Consumption: 5-20 Watt
Drive Technology: Dual 90° Electro-Mechanical Drive or Motor Drive*
Communication Protocol*: USB or RS485 or RS232
Integration*: 4 Inputs, 4 PFC outputs & Optional RS485
Access Time Out: 0-15 sec (Adjustable)
Duty Cycle: Intensive use
Cabinet Material: Available in Stainless Steel Grade 304/316* Or Mild Steel
Arm material: Stainless Steel Grade 304

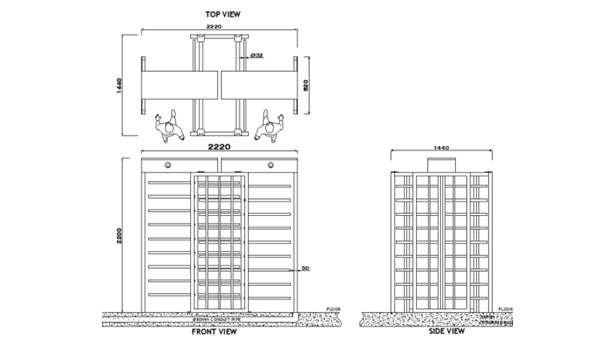

Cabinet Dimension: L 1440mm * W 2220mm* H 2200mm ±5%
Passage Width: 650mm
Lane Indicator: Built-in (Green or Red)
Throughput: 20-25 persons/minute
M.C.B.F.: 10 million cycles
Operating Temperature: -10 to 55° C
Installation: By anchor bolts on plain surface
Included Accessories: Mains Cable, Foundation Bolts etc.
Optional Accessories: Digital IN-OUT Counter, Wireless Remote, S.S. Railings, Canopy etc.
