Smart Retractable Flap barrier

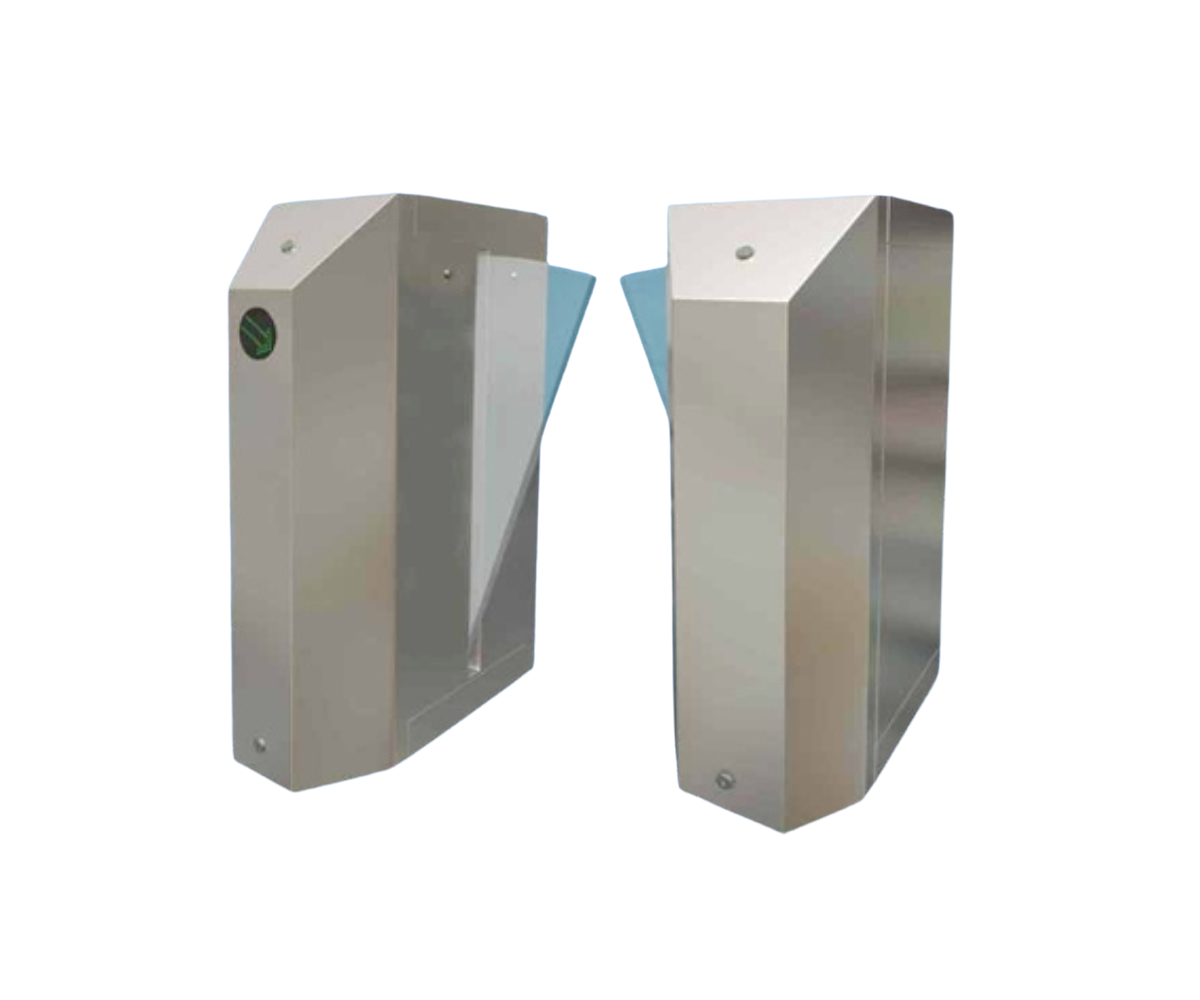

Smart Retractable Flap Barrier
Smart Retractable Flap Barrier is extremely graceful, elegant
and secured entry equipment; designed to control pedestrians
entering or exiting restricted areas. It provides an ideal contactless
solution for admission control with high aesthetic and comfort
requirements.
Features
- DC brush less motor based highly reliable drive
- Alarm function in case of illegal intrusion and reverse intrusion
- Infrared sensor to prevent pinch pedestrians
- Short opening times in seconds for a high throughput flow
- Simple integration with all access control systems
- Automatic opening during power failure
- Dynamic LED passage indication
- Long life cycle and low operating cost
Application

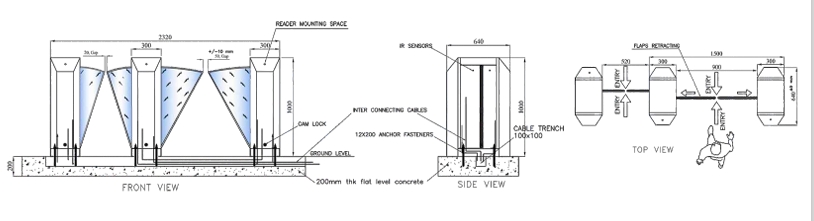

Dimension
Mains Supply: 180 ~ 270V, 47 ~ 63Hz / 90 ~ 130V, 47 ~ 63Hz
Weight: 94 Kg approx.
Throughput: 30 / min
Drive: BLDC motor
Configuration: Fail Safe / Fail Lock
Access Time Out: Adjustable 1–10 sec
Operating Temperature: 0° C to 55° C
Humidity: 95% Non-Condensing
Dimension (L x D x H) mm: 1090 x 300 x 1000 mm ±5%
Body Type: M.S. powder coated / S.S. grade 304/316*
Flap/Wings: Acrylic, Polycarbonate*, Glass*
Opening Time: 1 Second
IP Rating: IP54
Passage Width: 530 mm
Optional: Digital counters, Queue barricade, Tailgating
