SM 2200
SM 2200

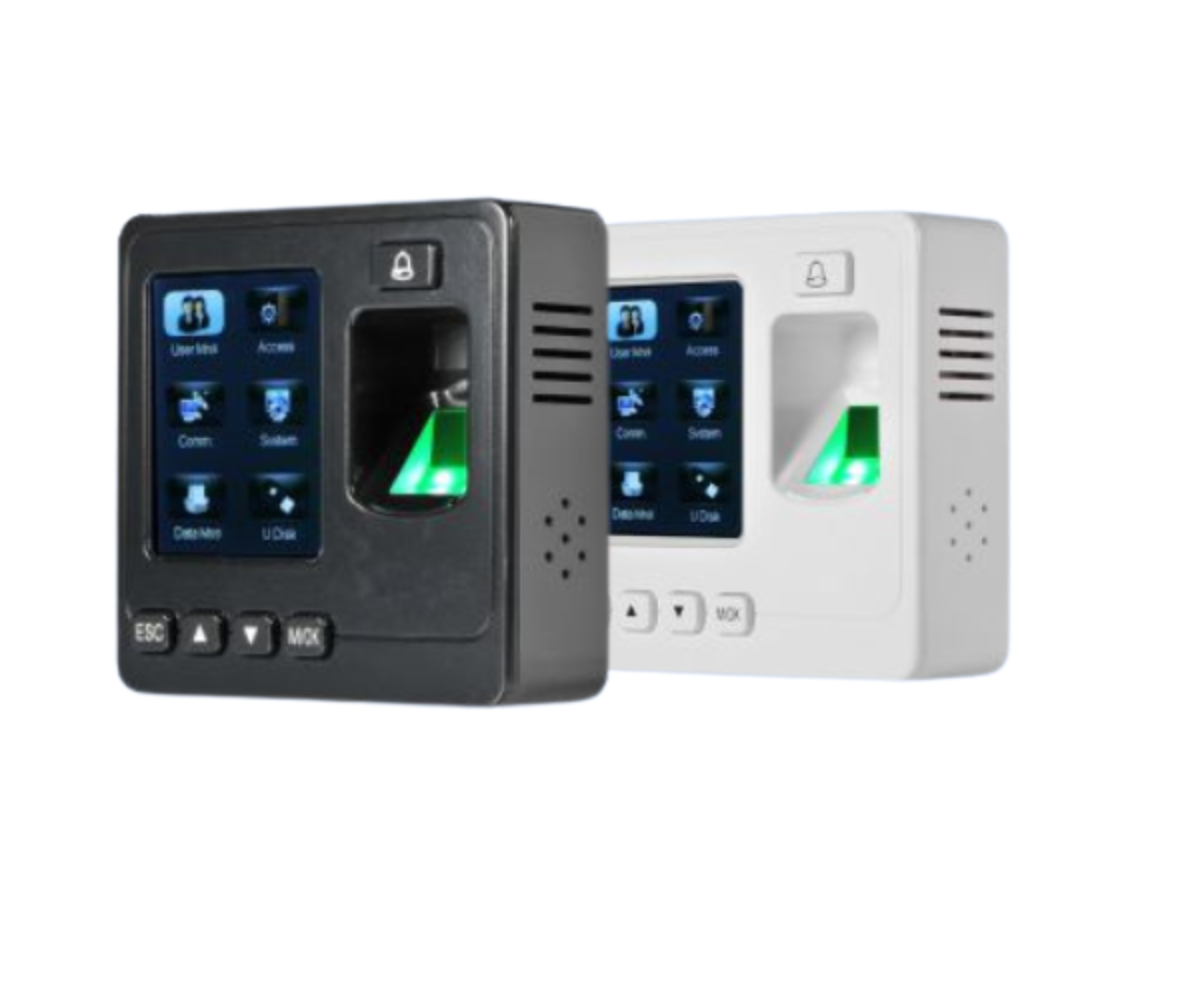

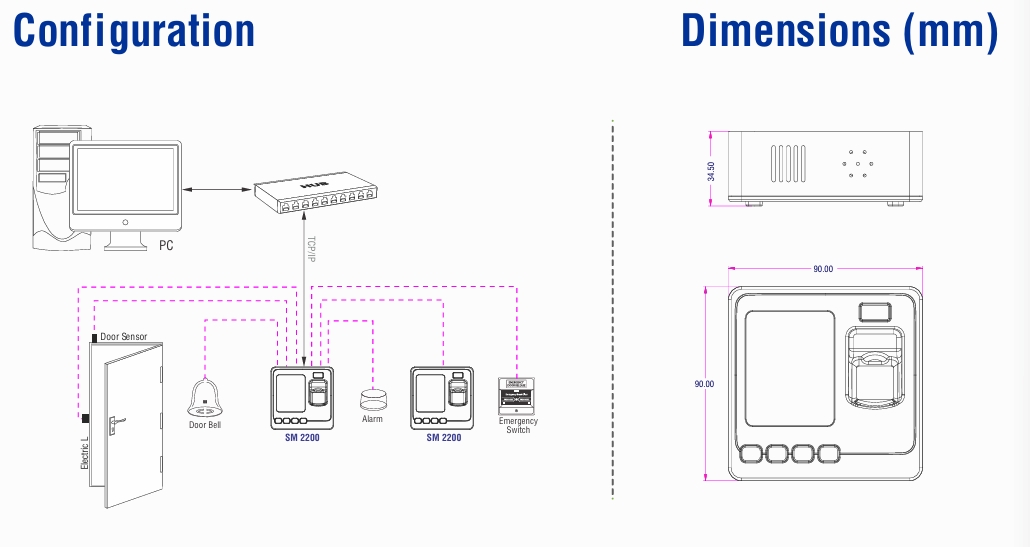

The SM 2200 is an IP based fingerprint terminal works both in network and standalone
modes. In network mode, it can connect with SMART software for access control and time
attendance management.
Wiegand output makes
SM 2200
flexible to connect with SMART or any 3rd party
controllers as a slave reader. Additionally wiegand input allows two units of SM 2200
to configure with each other and utilize Master & Slave solution, which requires user
verification at both entrance and exit. Meanwhile, anti-passback function can be
used to maximize the security.
Auxiliary input interface allows
SM 2200
to connect with an external source, for
instance, a smoke detector or emergency switch. Once the linkage function is
enabled through the machine menu, the device would generate an alarm signal
and open the door in case of emergency.
Feature
2.4-inch color display with graphical UI for easy operation
Up to 24 user-defined schedules that can be activated on a daily bell alert (optional)
Prompt audio acceptance or rejection signals for valid or invalid fingers
Compact and lightweight, small size for 86mm (L) x 86mm (H) socket installation
TCP/IP or RS485 communication for various networking environments
Supports USB flash drive for online data management
Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch
Up to 15 multi-verification methods to enhance security level
Standard access control features such as Time zone, Holiday, A&C Group, Unlock combination, etc.
Duress Alarm offers effective protection against duress by threats
Tamper-proof switch and multiple alarm outputs
Multi-languages customizable
Specification
Model Options:
SM500E: 125 KHz Proximity card reader
SM500M: 13.56 MHz Mifare card reader
Key Features:
Read Range:
KR500E: Up to 10 cm
KR500M: Up to 5 cm
Reading Time (Card): ≤200ms
Power / Current: DC 6–14V / Max. 70mA
Connectivity: Wiegand
Input Port: 2ea (External LED Control)
Output Format:
26bit Wiegand (default)
34bit Wiegand (default)
LED Indicator: 2 Color LED Indicators (Red and Green)
Beeper: Yes
Operating Temperature: -20°C to +65°C
Operating Humidity: 10% to 90% relative humidity, non-condensing
Physical Dimensions:
Color: Black
Dimensions (WxHxT): 116 x 75 x 17.3 mm
Weight: 50g
Manufacturer:
Smart Infocom Pvt. Ltd.
Location: 102-103, Chawda Commercial Centre, New Link Road, Mind Space, Behind Evershine Mall, Malad (W) – Mumbai 400 064
Empowering Businesses with Trusted Biometric & Access Solutions
