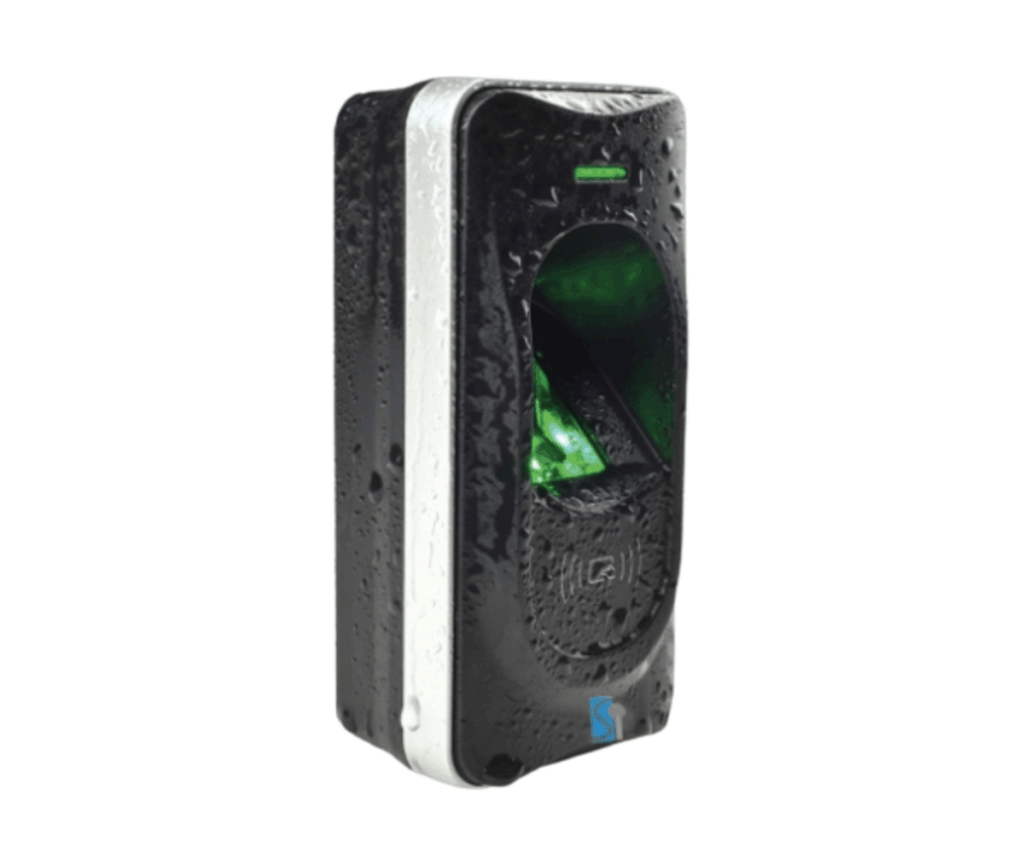

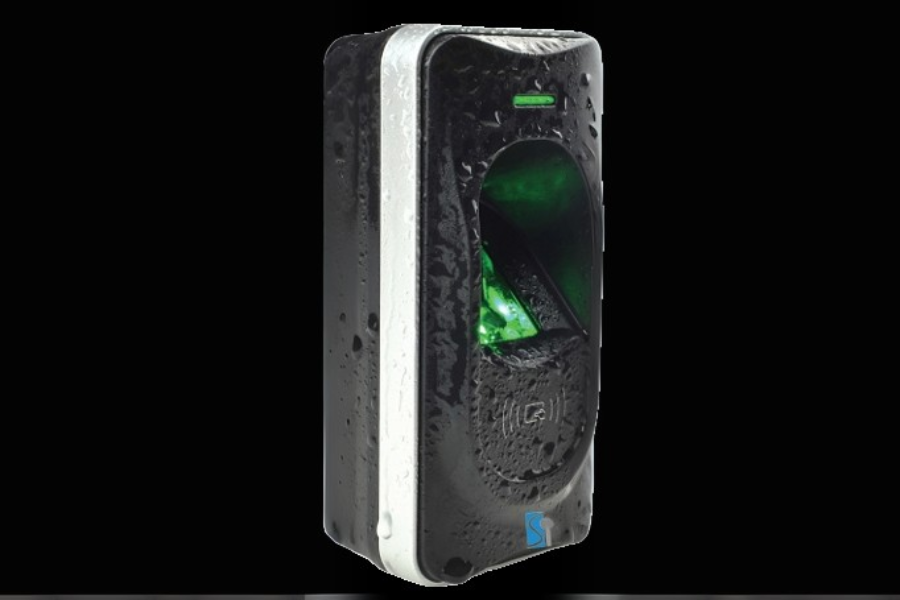

Smart-1200
Smart1200 is an IP65 rated outdoor fingerprint reader with RS485 communication
interface. It works idealy with biometric multi-door access contro lers, such as
in BIO Series, but also with standalone access control terminals, such as the F8.
Essentially a slave reader, it captures and transfers fingerprint templates to the
master panel for verication. With its safe communication protocol and rugged
structure, Smart1200 offers complete anti-vandal security and extra durability in all
outdoor weather conditions.
1. Hardware
CPU: 324 MHz
Sensor: Smart Small-sized Sensor
2. Environment
Operating Temperature: 0°–45°C
Operating Humidity: 20%–80%
IP Rating: IP65
3. Power
Power: 12V, DC
4. Communication
Comm. Port: RS485
5. Dimensions
Dimensions (L x W x D): 50x107x37mm
Weight: 0.12kg
