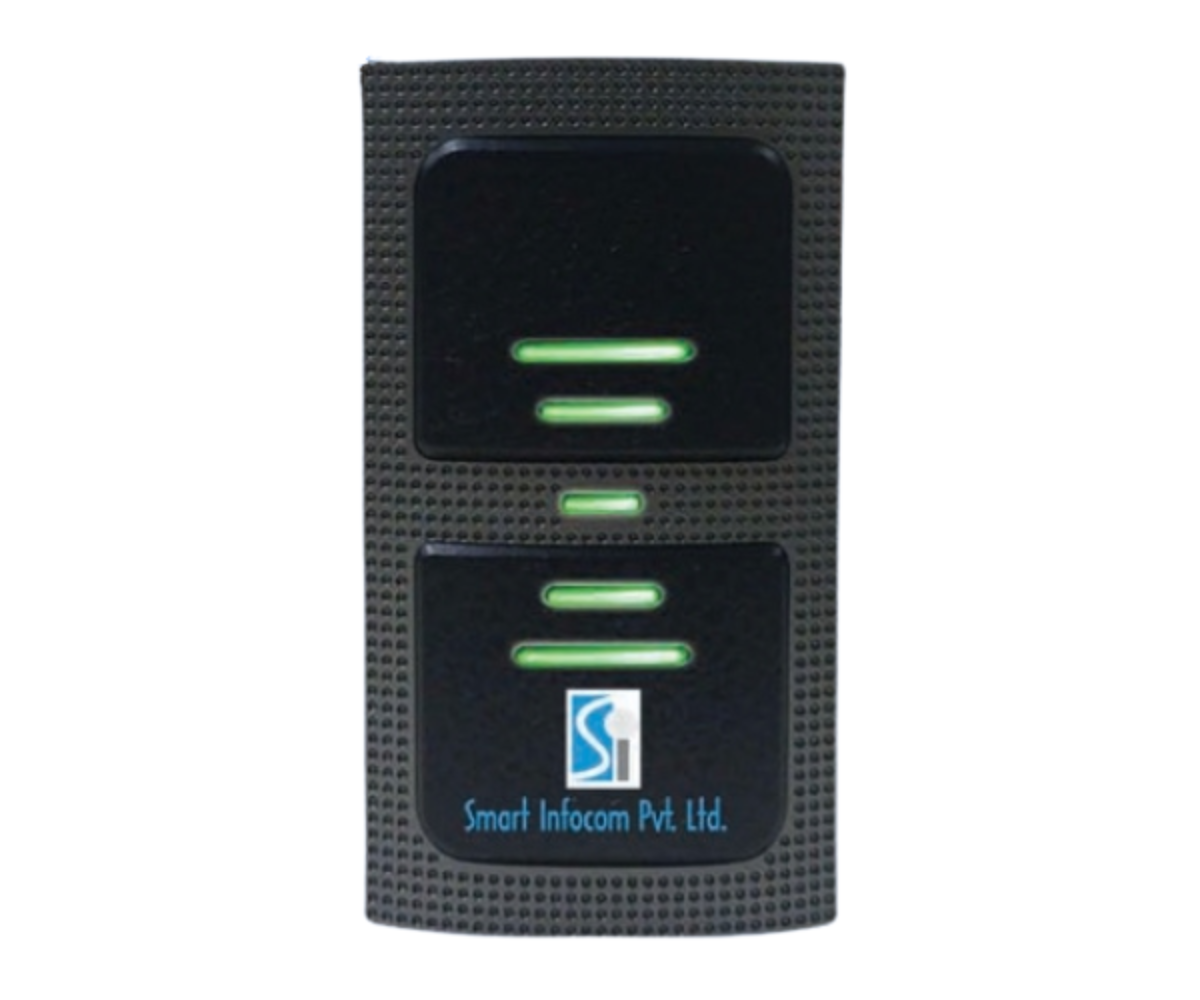

SMART-500

Model Options:

• SM500E: 125 KHz Proximity card reader

• SM500M: 13.56 MHz Mifare card reader

Key Features:

• Read Range:

  • KR500E – Up to 10 cm

  • KR500M – Up to 5 cm

• Reading Time (Card): ≤200ms

• Power / Current: DC 6–14V / Max. 70mA

• Connectivity: Wiegand

• Input Port: 2ea (External LED Control)

• Output Format:

  • 26bit Wiegand (default)

  • 34bit Wiegand (default)

• LED Indicator: 2 Color LED Indicators (Red and Green)

• Beeper: Yes

• Operating Temperature: -20°C to +65°C

• Operating Humidity: 10% to 90% relative humidity, non-condensing

Physical Dimensions:

• Color: Black

• Dimensions (WxHxT): 116 x 75 x 17.3 mm

• Weight: 50g

Manufacturer:

• Smart Infocom Pvt. Ltd.

• Location: 102-103, Chawda Commercial Centre, New Link Road, Mind Space, Behind Evershine Mall, Malad (W) – Mumbai 400 064
