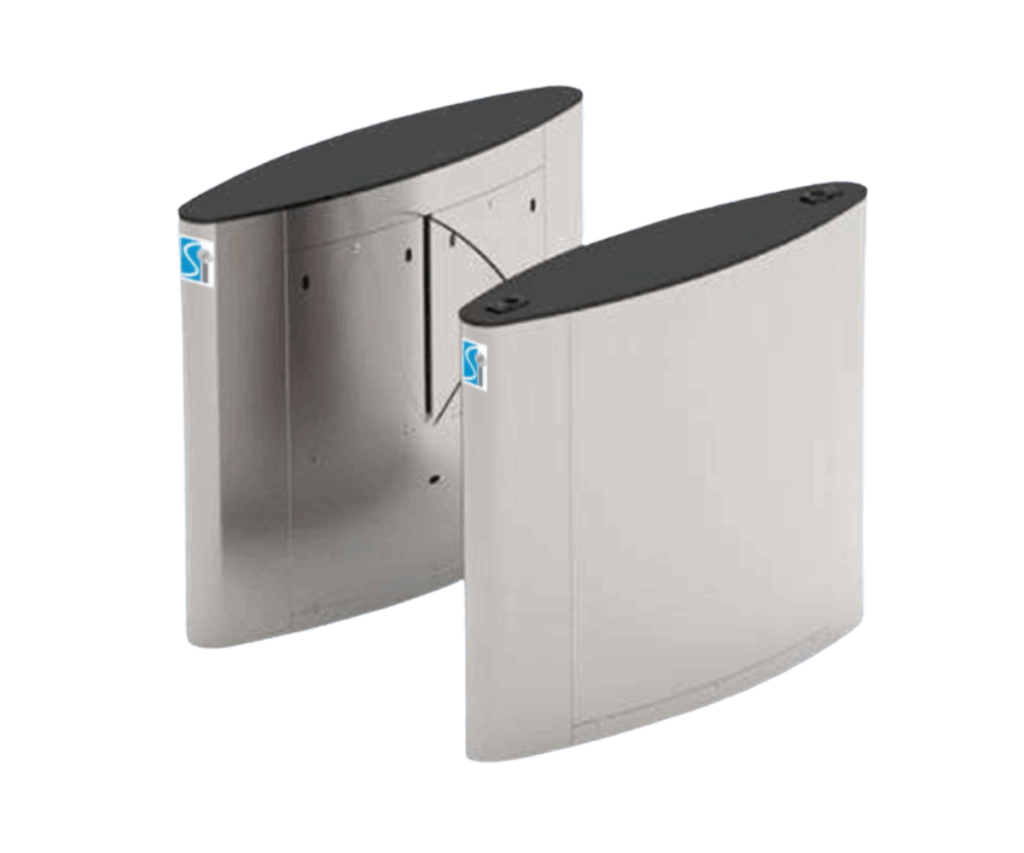

Smart FB oval - flap barrier

Technical Specification

• Supply Voltage: 230VAC ±10%

• Power Consumption: 15-80 Watt

• Drive Technology: BLDC Motor Drive

• Communication Protocol: USB or RS485 or RS232

• Integration: 4 Inputs, 4 PFC outputs & Optional RS485

• Access Time Out: 0 – 15 sec (Adjustable)

• Opening / Closing Speed: Less than 1 sec

• Duty Cycle: Intensive use

• Cabinet Material: Available in Stainless Steel Grade 304/316 or Mild Steel

• Flap Arm material: Toughen Glass or Polycarbonate

• Cabinet Dimension: L 1200mm * W 300mm * H 1000mm ±5%

• Passage Width: 550mm

• Lane Indicator: Built-in (Green or Red)

• Throughput: 35-40 persons/minute

• M.C.B.F.: 10 million cycles

• Operating Temperature: -10 to 55°C

• Installation: By anchor bolts on plain surface

• Included Accessories: Mains Cable, Foundation Bolts etc.

• Optional Accessories: Crawling Sensor, Jumping sensor, Flap Arm with RGB LED, Digital IN-OUT Counter, Wireless Remote, S.S. Railings, Canopy etc.
