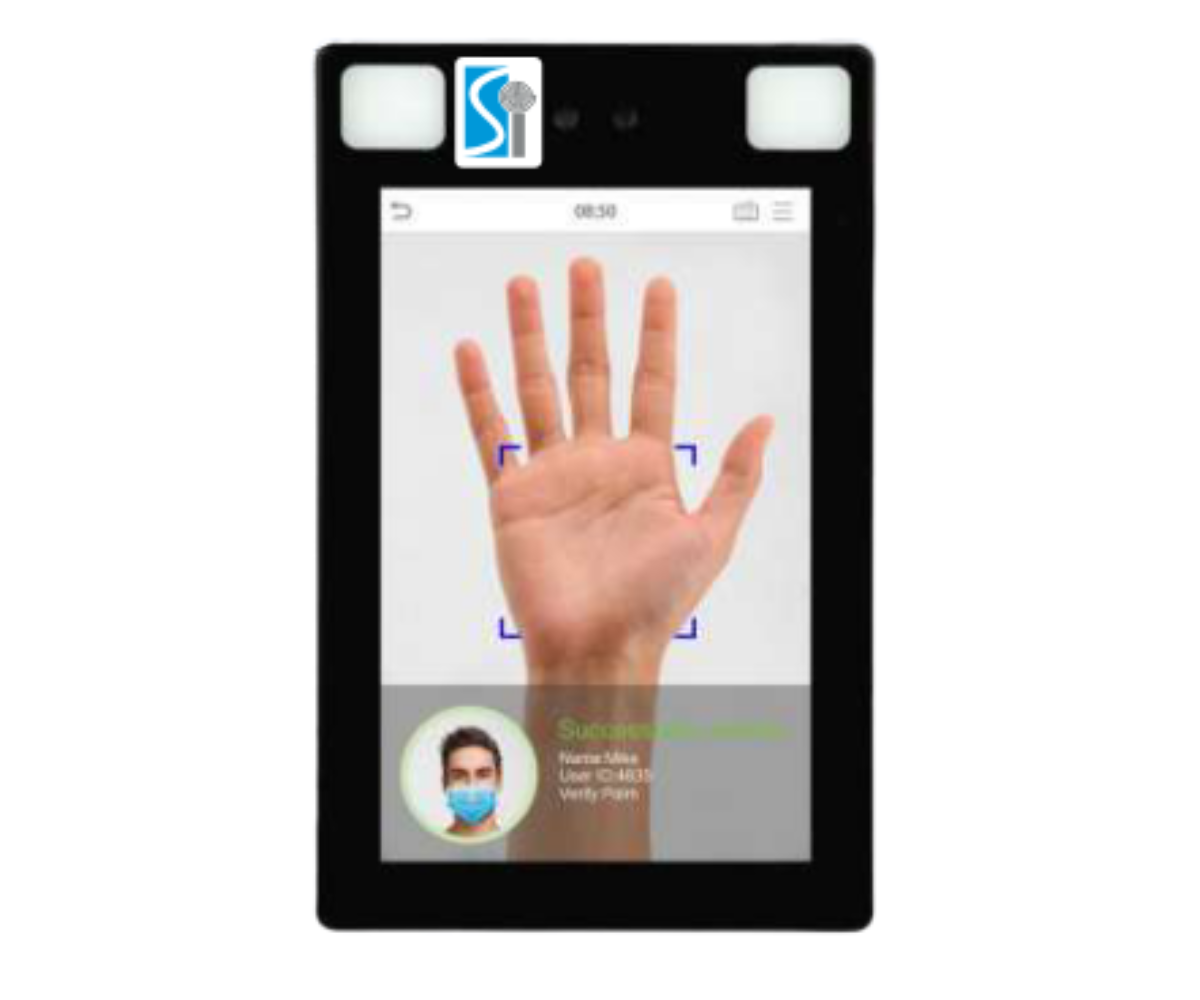

SMART TOUGH 22
SMART TOUGH 22
Smart Tough 22 is a fully upgraded version of the Jaguar face product line, which is designed to deal with all kinds of
scenarios. Powered by the Smart Tough series-customized CPU for running the intellectualized engineering facial
recognition algorithm and the latest computer vision technology, the supports both facial and palmSmart Tough 22
verification with large capacity and rapid recognition speed, boosting the security performance in all aspects.
Smart Tough 22 also helps eliminate hygiene concerns; not only because of the contactless recognition technology it
is equipped with, but also because of the masked individual identification.
In addition, the 3-in-1 palm recognition (Palm Shape, Palm Print and Palm Vein) is performed in 0.35 sec per hand;
the palm data acquired will be compared with a maximum of 5,000 palm templates.
As mentioned above, the Smart Tough 22 can assist in reducing the risk of infection and germs spreading during the
recent global public health issue as well. It enables masked individual identification during facial and palm verification
at all access points, especially in hospitals, factories, schools, commercial buildings, airports, stations, and other public
areas.
Features
Ultra-large capacity of facial templates for 1:N verification: 30,000 (standard); max. 50,000 (optional)
Huge capacity of palm templates; 1:N – 5,000 palm templates
Anti-spoofing algorithm against print attack (laser, color and B/W photos), videos attack, and 3D mask attack
Intelligent energy-saving design; precisely evaluation of the distance (up to 2.5m (8.2ft)) between the user and the device by a microwave detector before waking up the recognition terminal
2MP starlight CMOS sensor camera with WDR function, which enables the terminal to recognize faces under extreme lighting conditions (0.5 lux – 50,000 lux)
8’’ touch screen with 400 lux, which offers high visibility under strong and direct light
IP68 dust-proof and waterproof standard & IK04 protection standard
Wide range of working temperature (-30 ~ 60°C; -22 ~ 140°F)
Mask detection; facial verification available with masks
Recognition distance up to 2m long and extra wide angle recognition
The recognition distance has been greatly extended up to 2 meters long,
which significantly improves maximum traffic rate. While most of algorithms
only support 15-degree angle facial recognition, Smart Jaguar Mini
supports 30-degree angle facial recognition
Capacity
Faces: 30,000 (1:N)
50,000 (Optional)
Palm: 5,000 (1:N)
Users / Cards: 50,000
Transactions: 1,000,000 / 2,000,000 (Optional)
User Photos: 30,000
Event Photos: 10,000

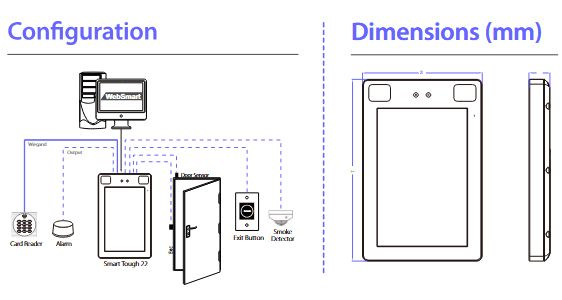

Compatibility
Security Relay Box
Wiegand / RS485 / RS232 Slave Reader with FP / RFID / Barcode / QR-code
Websmart Software
Standard Functions
Access Levels, Groups, Holidays, DST
Duress Mode (Password), Anti-Passback
Record Query, Tamper Switch Alarm
Custom Wallpaper & Screen Saver
Access Control Interface
Lock Relay Output
Alarm Output / Auxiliary Input
Exit Button / Door Sensor
Special Functions
IP68 & IK04
0.3s High Speed Facial Verification
Liveness Detection
HTTPS Communication Encryption (Optional)
Event Snapshot
Hardware
900MHz Dual Core Customized Computer Vision CPU
512MB RAM / 8G Flash
8″ Hight light (400lux) IPS Touch LCD
125KHz EM Reader / 13.56MHz RFID S50/S70 IC Card
2MP WDR Low Light Camera
Adjustable Light Brightness LED
Hi-Fi Voice
High Sensitivity Microphone
Distance Detection Sensor
Reset Button and Tamper Switch
Communication
TCP/IP
Wiegand Input / Output
Wi-Fi (Optional)
RS485 / RS232
Additional Info
Face Algorithm: SmartFace
Palm: FAR ≤0.01%; FRR ≤1%
Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
Working Humidity: ≤93%
Storage Temperature: -40°C ~ 65°C (-40°F ~ 149°F)
Storage Humidity: ≤93%
Net Weight: 853g
Dimensions (HxLxD): 227 x 143 x 26.1mm
Power
Operating Voltage: 12V DC
Current Draw: < 2,000mA
