SMART UHF 6 & 12 Long Readers
SMART UHF 6 & 12 Long Readers

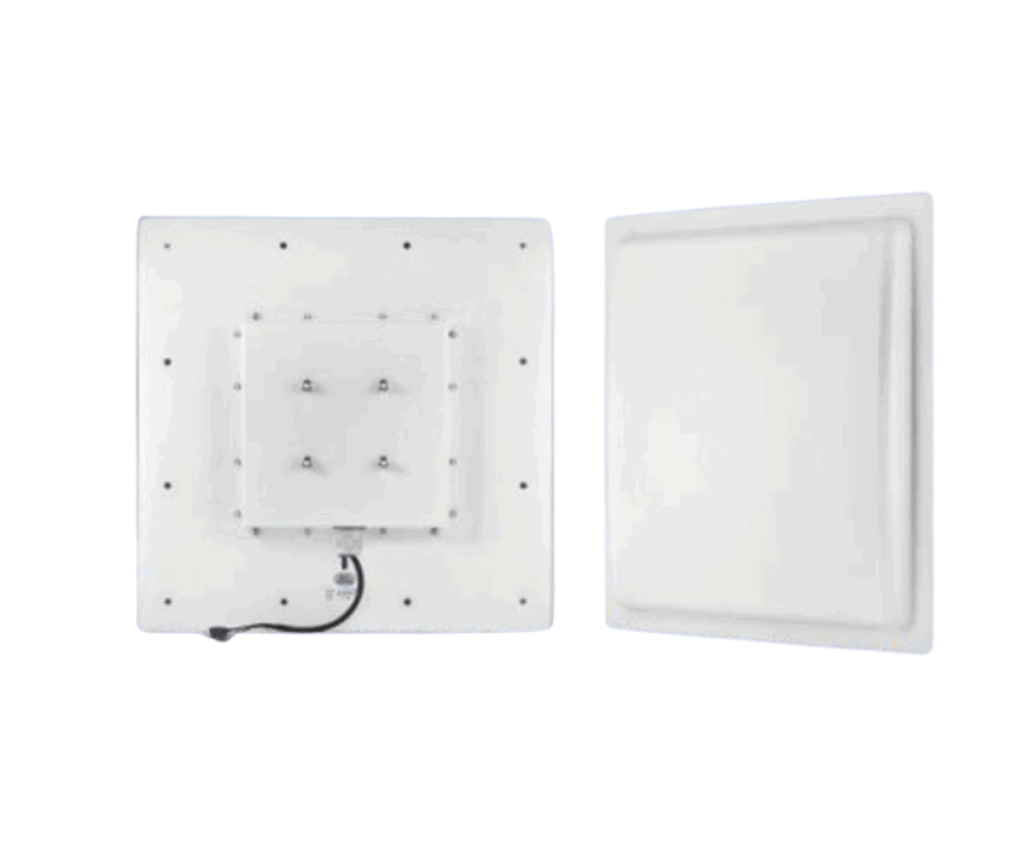

SMART UHF 6 & 12 Long Readers are third-generation UHF readers designed to deliver high performance with long reading distance, stable functionality, and faster recognition speed. These advanced readers are equipped with passive UHF card capability, making them ideal for a wide range of applications including Vehicle Management and Personnel Management. With compliance to CE and FCC technology standards, the product ensures quality, reliability, and interoperability across various systems.
Features
Working Modes:
Trigger to Read
Always Read (Default)
Wiegand Output Support:
Wiegand 26 (Default)
Other formats supported
LED Indicator:
Located at the bottom of the reader
Indicates reading status
7-color indicators:
Red, Green, Blue, Yellow, Cyan, Purple, White
Communication Modes:
Supports Wiegand and RS485
Protection Level:
Rated IP66 (dust-tight and water-resistant)
Product Specifications:
Reading Distance:
SMART UHF 6: Up to 6 meters (Handheld test), ~4m in actual scenarios
SMART UHF 12: Up to 12 meters (Handheld test), ~4m in actual scenarios
Antenna Gain:
SMART UHF 6: 9dBi
SMART UHF 12: 12dBi

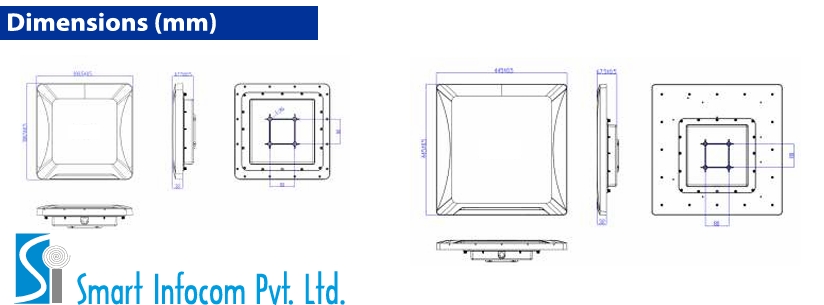

Dimensions (mm):
SMART UHF 6: 308.5 × 308.5 × 67.5
SMART UHF 12: 445 × 445 × 67.5
Weight:
SMART UHF 6: 1.8 kg
SMART UHF 12: 3 kg
Power:
1.2 – 4.2W for SMART UHF 6
1.2 – 4.5W for SMART UHF 12
Frequency Range:
E Band: 865 MHz – 868 MHz
F Band: 902 MHz – 906 MHz (adjustable)
Communication Interface:
Wiegand, RS485;
USB configuration parameters (Wiegand and RS485 requires one of two options)
Interface Protocol:
EPC global UHF Class 1 Gen 2 / ISO 18000-6C
Working Mode:
Read Always (Default)
Read by Trigger
Output Power:
Adjustable range: 19dBm – 30dBm
Protection Level:
IP66 (Water and dust resistant)
Working Voltage:
DC 9V–15V
Working Temperature and Humidity:
-20°C to 65°C
<85% RH
Storage Temperature and Humidity:
-20°C to 80°C
<85% RH
RS485 Communication:
Optional baud rates: 9600, 19200, 38400, 57600, 115200
Default: 115200
