SMT22
SMT22

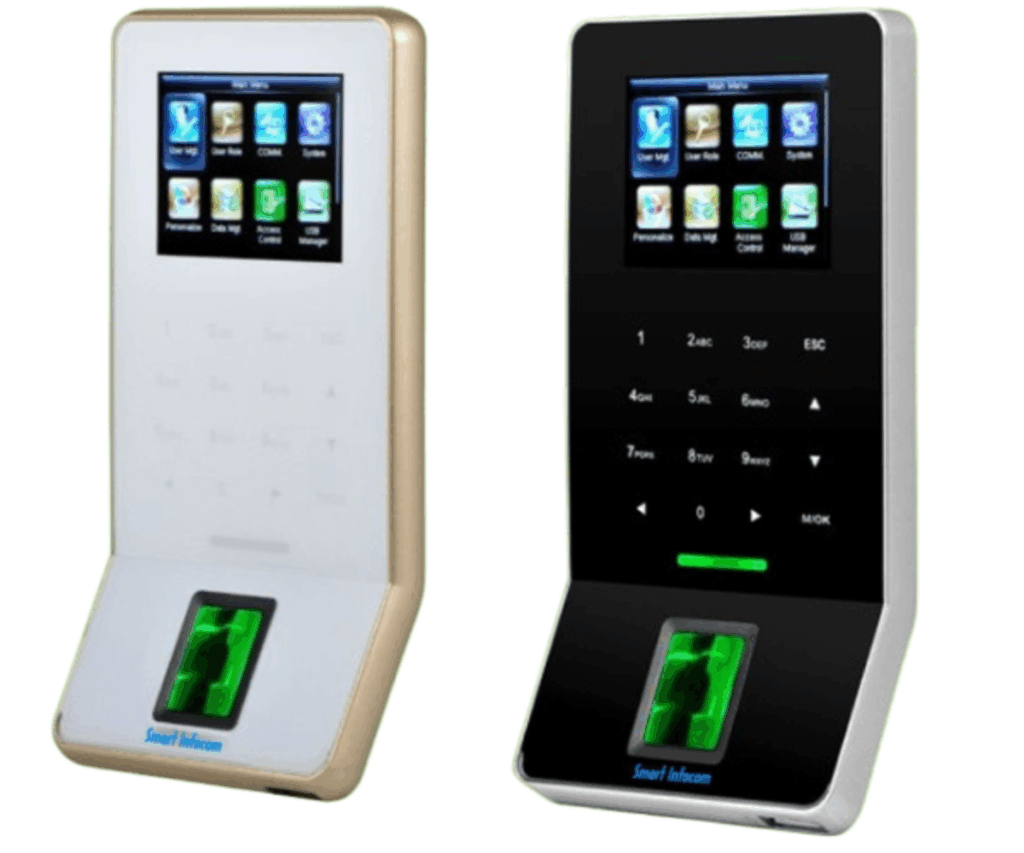

SMT22 is an ultra-thin fingerprint time attendance and access control
terminal with BioID sensor and Wi-Fi, which offers unparalleled
performance with advanced algorithm for reliability, precision and
excellent matching speed. SMT22 features the fastest commercial-based
fingerprint matching algorithm and high-performance, high-image
quality infrared detection fingerprint sensor.
SMT22 provides a superior touching experience with touch keypad, and
offers flexibility for standalone installation or with any third-party access
control panel that supports standard wiegand signal. TCP/IP, RS485 and
Wi-Fi are also available that the device can be used in different networks.
Features
• 2.4-inch TFT color screen and Touch keys
• Ultra thin and elegant design
• Full Access Control Features:
Anti-passback, access control interface
for 3rd party electric lock, door sensor,
exit button, alarm
• Standard Wi-Fi
Network interface by TCP/IP or RS485
• Built-in auxiliary input with enhanced
flexibility to link with wired detector or
emergency switch
• Multiple Verification Modes: Multi
verification methods (card is optional)
providing user various choices
Product Specifications:
Display:
2.4-inch TFT LCD Color Screen
Fingerprint Capacity:
Supports up to 3000 fingerprints
Card Capacity:
5000 (Optional for ID or Mifare card)
Transaction Capacity:
Stores up to 100,000 transactions
Sensor:
BioID Sensor / Optional SilkID Sensor
Algorithm Version:
Finger VX10.0
Communication:
RS232/485, TCP/IP, USB-host, Wi-Fi
Access Control Interface:
3rd Party Electric Lock, Door Sensor, Exit Button, Alarm
Wiegand Signal:
Input and Output supported
Auxiliary Input:
1ea for linkage function
Functions:
DST, Automatic Status Switch, Record Query, T9 Input, 14-digit User ID
Anti-passback, Scheduled Bell, Printer (Optional), ADMS (Optional)
Power Supply:
12V DC, 3A
Operating Temperature:
0°C to 45°C
Operating Humidity:
20% to 80%
Dimensions (L x W x H):
158.5 × 78.0 × 19.4 mm
