Smart MDC 222 Pro Series
Smart MDC 222 Pro Series
Smart MDC 222 Pro Series is a project oriented high-end product line with unique features
such as embedded fingerprint verification and advanced access control functions, which
can be managed by TCP/IP communication thru LAN or WAN networks.
The Pro Series are the perfect match for Smart Security web based software Smart MDC 222
platform to provide a full featured biometric security solution.
In combination with the FR1300 RS485 reader, the panels can authenticate users under
multiple verification modes such as fingerprint, card and password for a higher security level.
Features
Display and User Interface
2.4-inch color display with a graphical UI for easy operation.
User-Defined Schedules
Up to 24 user-defined schedules can be activated on a daily bell alert (optional).
Audio Feedback
Prompt audio acceptance or rejection signals for valid or invalid fingers.
Compact and Lightweight Design
Small size (86mm L x 86mm H) for socket installation.
Communication Support
Supports TCP/IP or RS485 communication for various networking environments.
USB Flash Drive Support
Allows online data management through a USB flash drive.
Auxiliary Input for Flexibility
Built-in auxiliary input to link with wired detectors or emergency switches.
Multi-Verification Methods
Up to 15 multi-verification methods to enhance security.
Standard Access Control Features
Includes Time Zone, Holiday, A&C Group, Unlock Combination, etc.
Duress Alarm
Provides effective protection against duress situations.
Tamper-Proof Switch
Comes with a tamper-proof switch and multiple alarm outputs.
Multi-Language Customizable
Supports multi-language customization for user interface.
Specification
Model Options:

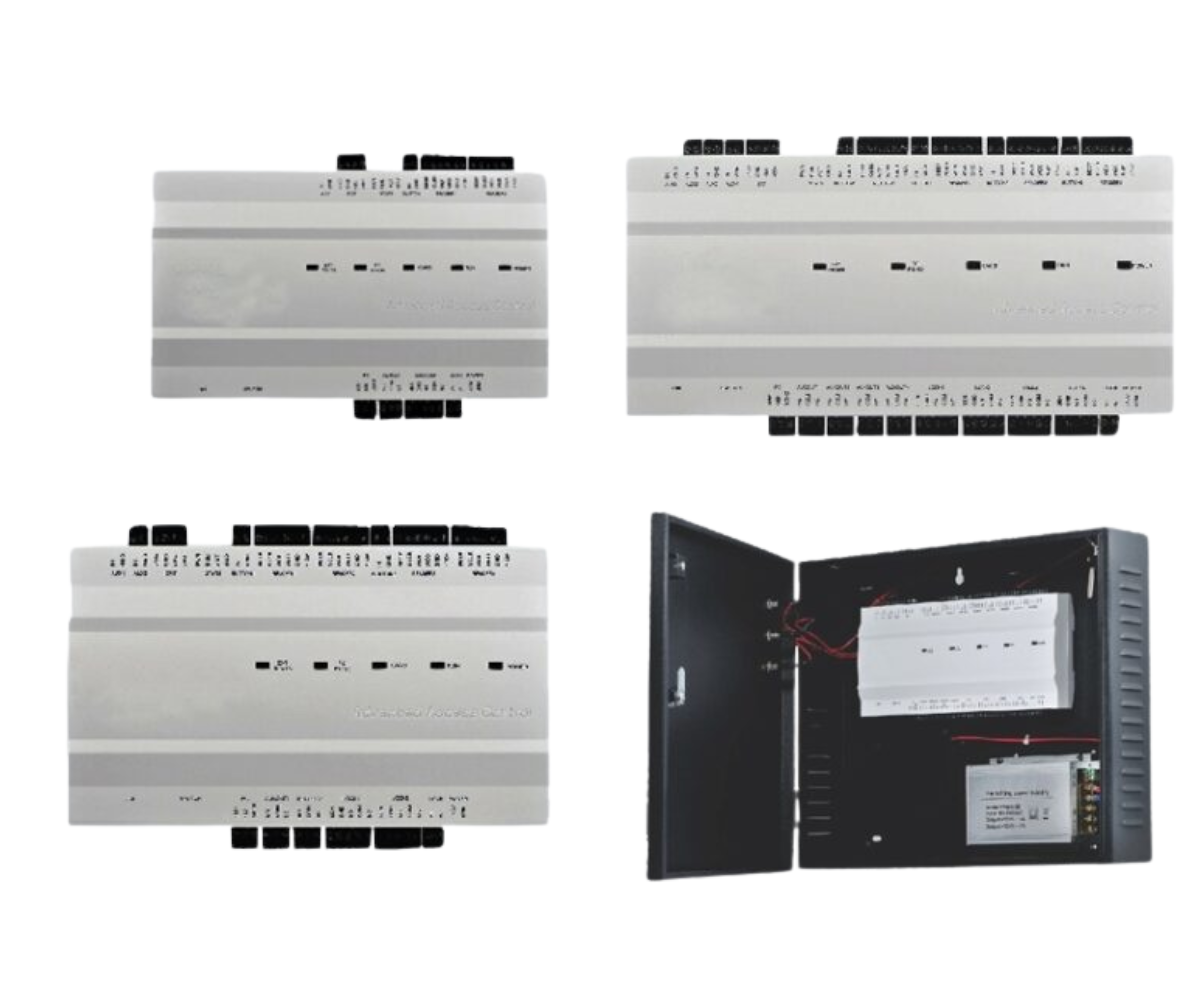

Smart MDC 222 Pro 1: 1 Door Controller
Smart MDC 222 Pro 2: 2 Door Controller
Smart MDC 222 Pro 4: 4 Door Controller
Key Features:
Number of Doors Controlled
Smart MDC 222 Pro 1: 1 Door
Smart MDC 222 Pro 2: 2 Doors
Smart MDC 222 Pro 4: 4 Doors
Number of Readers Supported
Smart MDC 222 Pro 1: 4 (2 RS-485 Reader, 2 26-bit Wiegand Reader)
Smart MDC 222 Pro 2: 8 (4 RS-485 Reader, 4 26-bit Wiegand Reader)
Smart MDC 222 Pro 4: 12 (8 RS-485 Reader, 4 26-bit Wiegand Reader)
Types of Readers Supported
Smart MDC 222 Pro 1: 26-bit Wiegand and RS485 FR Series Reader
Smart MDC 222 Pro 2: 26-bit Wiegand and RS485 FR Series Reader
Smart MDC 222 Pro 4: 26-bit Wiegand and RS485 FR Series Reader
Number of Inputs
Smart MDC 222 Pro 1: 3 (Exit Button and Door Status, 1 AUX)
Smart MDC 222 Pro 2: 6 (2 Exit Button, 2 Door Status, 2 AUX)
Smart MDC 222 Pro 4: 12 (4 Exit Button, 4 Door Status, 4 AUX)
Number of Outputs
Smart MDC 222 Pro 1: 2 (1-Form C Relay for Lock and One Form C Relay for AUX Output)
Smart MDC 222 Pro 2: 4 (2-Form C Relay for Lock and 2-Form C Relay for AUX Output)
Smart MDC 222 Pro 4: 8 (4-Form C Relay for Lock and 4-Form C Relay for AUX Output)
Card Holders Capacity
Smart MDC 222 Pro 1: 30,000
Smart MDC 222 Pro 2: 30,000
Smart MDC 222 Pro 4: 30,000
Fingerprint Capacity
Smart MDC 222 Pro 1: 3,000 (optional 20,000)
Smart MDC 222 Pro 2: 3,000 (optional 20,000)
Smart MDC 222 Pro 4: 3,000 (optional 20,000)
Log Events Capacity
Smart MDC 222 Pro 1: 100,000
Smart MDC 222 Pro 2: 100,000
Smart MDC 222 Pro 4: 100,000
Communication
Smart MDC 222 Pro 1: TCP/IP and RS-485
Smart MDC 222 Pro 2: TCP/IP and RS-485
Smart MDC 222 Pro 4: TCP/IP and RS-485
Package Dimensions
Smart MDC 222 Pro 1: 350(L) × 90(H) × 300(W) mm
Smart MDC 222 Pro 2: 350(L) × 90(H) × 300(W) mm
Smart MDC 222 Pro 4: 350(L) × 90(H) × 300(W) mm
Package Weight
Smart MDC 222 Pro 1: 3.6kg
Smart MDC 222 Pro 2: 3.6kg
Smart MDC 222 Pro 4: 3.7kg
CPU
Smart MDC 222 Pro 1: 32-bit 400 MHz CPU
Smart MDC 222 Pro 2: 32-bit 400 MHz CPU
Smart MDC 222 Pro 4: 32-bit 400 MHz CPU
RAM
Smart MDC 222 Pro 1: 32MB
Smart MDC 222 Pro 2: 32MB
Smart MDC 222 Pro 4: 32MB
Flash Memory
Smart MDC 222 Pro 1: 128MB
Smart MDC 222 Pro 2: 128MB
Smart MDC 222 Pro 4: 128MB
Power
Smart MDC 222 Pro 1: 9.6V–14.4V DC
Smart MDC 222 Pro 2: 9.6V–14.4V DC
Smart MDC 222 Pro 4: 9.6V–14.4V DC
Operating Temperature
Smart MDC 222 Pro 1: 0°C–45°C
Smart MDC 222 Pro 2: 0°C–45°C
Smart MDC 222 Pro 4: 0°C–45°C
Operating Humidity
Smart MDC 222 Pro 1: 20% to 80%
Smart MDC 222 Pro 2: 20% to 80%
Smart MDC 222 Pro 4: 20% to 80%
