Smart Tough 212

Product Information

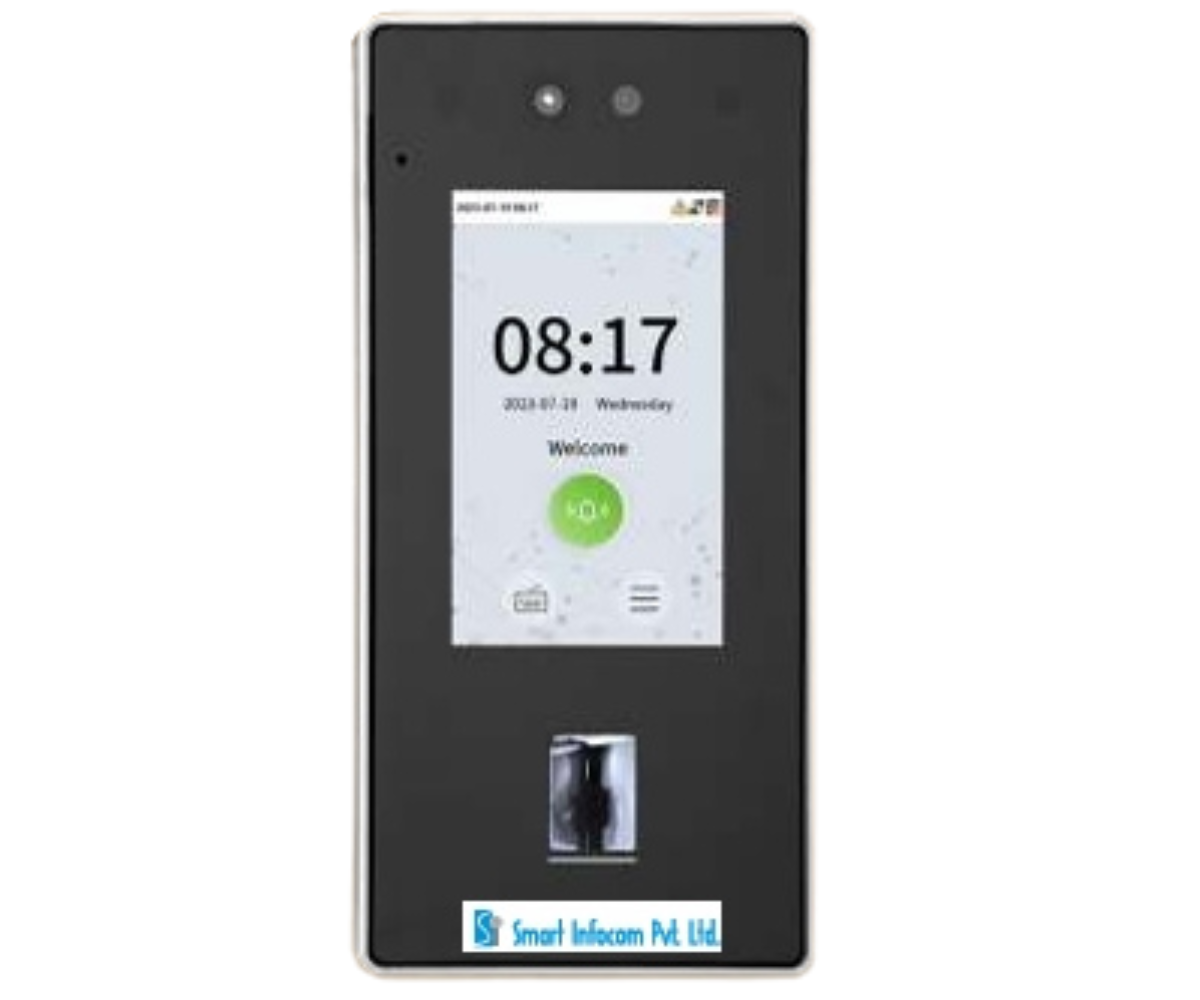

SMART TOUGH 212

The Smart Tough 212 uses intelligent engineering facial recognition algorithms and the latest computer vision
technology, featuring a video intercom function.

What sets the Smart Tough 212 apart is its 4-inch color LED touch screen, a 2MP binocular camera,
a built-in microphone, and a speaker for two-way video communication. There are two ways to use video
intercom functions. Firstly, users can have a video phone through the WebSmart app when connected to the
internet. Secondly, the terminal can connect the indoor station via SIP protocol.

The Smart Tough 212 can also integrate with the WebSmart Mobile Page to support Dynamic QR codes
for access control or time and attendance protocols. Furthermore, the Smart Tought 212 incorporates the
ultimate anti-spoofing algorithm for facial recognition, protecting most fake photos and video attacks.
The terminal also supports specialized QR modules such as QR code, PDF417, Data Matrix, MicroPDF417,
and Aztec.

Specification

  • Model: Smart Tough 212

    Display: 4″ @ TFT Color Touch LED Screen (480×800)

    Camera: Binocular Camera @ 2MP

    Operating System: Linux

    Hardware:

    • CPU: Dual Core @ 1GHz

    • RAM: 1GB; ROM: 8GB

    • Speaker: 8 ohm @ 1W

    • Microphone: ×1 (Sensitivity: -32dB / Omni-directional / Signal-to-Noise Ratio: 58dB / Impedance: 2.2kΩ)

    • Fingerprint Sensor: In-Glass Fingerprint

    Authentication Method: Face / Fingerprint / Card / Password (Virtual Keypad)

    User Capacity: 3,000 (1:N) (Standard)

    Face Template Capacity: 3,000 (1:N) (Standard)

    Fingerprint Template Capacity: 3,000 (1:N) (Standard)

    Card Capacity: 3,000 (1:N) (Standard)

    Transaction Capacity: 200,000 (1:N)

    Max. User Password Length: 8 Digits

    Biometric Verification Speed:

    • Less than 0.35 second (Facial Recognition)

    • Less than 0.5 second (Fingerprint Recognition)

    Touchless Biometric Recognition Distance: 30cm to 170cm @ Face

    False Acceptance Rate (FAR) %:

    • ≤0.01% (Facial Recognition)

    • ≤0.0001% (Fingerprint)

    False Rejection Rate (FRR) %:

    • ≤0.02% (Facial Recognition)

    • 0.01% (Fingerprint)

    Biometric Algorithm: SmartFace V3.9 & SmartFinger V10.0

Card Type:

  • ID Card @ 125 kHz (Optional)

  • IC Card @ 13.56 MHz



Communication:

  • TCP/IP ×1

  • Wi-Fi

  • Wiegand (Input & Output) ×1

  • RS485: Smart RS485 ×1

  • USB: Type A (USB Drive Only) ×1

  • Aux Inputs ×1, Electric Lock ×1, Door Sensor ×1, Exit Button ×1, Alarm Output ×1, Wired Doorbell ×1



Standard Functions:

  • ADMS

  • DST

  • 14-digit User ID

  • T9 Keyboard (Input)

  • Photo Capture

  • Event Photo Capture

  • Record Query

  • Tamper Switch Alarm

  • Automatic Status Switch

  • Multiple Verification Methods

  • Anti-Passback

  • Wired Doorbell

  • Schedule Bell

  • HTTPS / SSH Backend Access

  • AC Push and TA Push Protocol Switch



Power Supply: DC 12V 3A (Optional)

Operating Temperature: -5°C to 45°C

Operating Humidity: 10% to 90% RH (Non-condensing)

Dimensions: 183 mm × 88 mm × 20.5 mm (L × W × H)

Gross Weight: 0.503 kg

Net Weight: 0.453 kg

Supported Software: WebSmart

Installation: Wall-mount (Compatible with Asian Gang-box / Single Gang-Box)

Ingress Protection Rating: IP65 (waterproof and dustproof

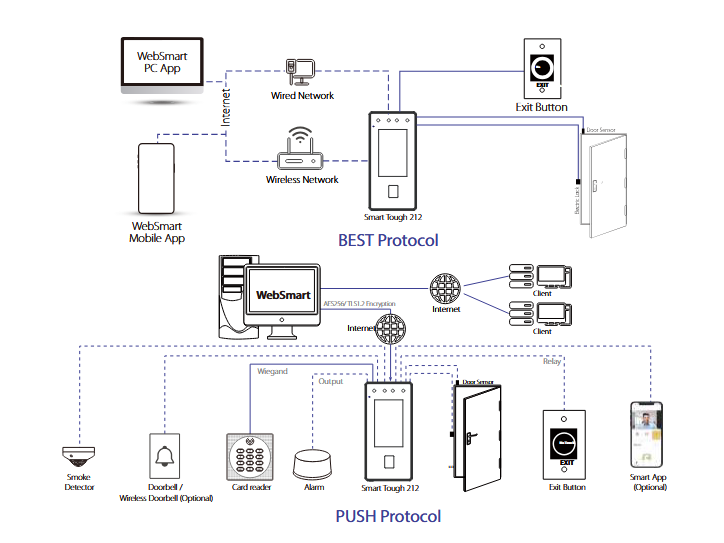

Configuration

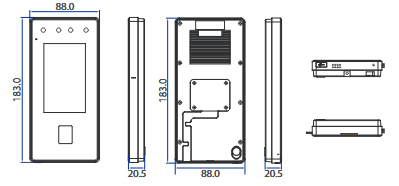

Dimension

PDF Brochure
